Top View Analyzer

Top View Analyzer Specification

Machine Weight
25 Kilograms (kg)

Top View Analyzer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C)

Delivery Time
6-8 Week

Main Export Market(s)
Asia

Main Domestic Market
All India

About Top View Analyzer

TVA100: It is the only instrument in the world to use the top-view reflection method for measuring the contact angle of a liquid on a solid from above. TVA100 determines the contact angle using the radius of curvature of the upper surface of the drop. The innovative measuring method is particularly suitable for measurements in depressions and on concave surfaces where drops cannot be analyzed using the conventional side view.

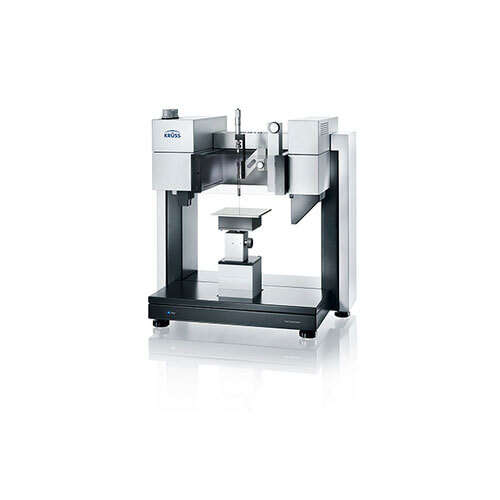

The measuring head is available as a module for the well-proven KR SS DSA100, DSA30 and Easy Drop instruments and also as an independent portal system for contact-free measurements on large samples.

Features

Evaluation of the surface curvature using the mirror image of spots of light.
Measurement on Concave surface or in recesses.
Non-sensitive precision drop deposiyion for a wide range of liquids.
Rapid assessment of wetting homogeneity.

Available as:

Top View Analyzer TVA100B
Module for KR SS DSA25, DSA30 and DSA100 instruments
Portal system (TVA100R) for contact-free measurements on large samples (TVA100R)
